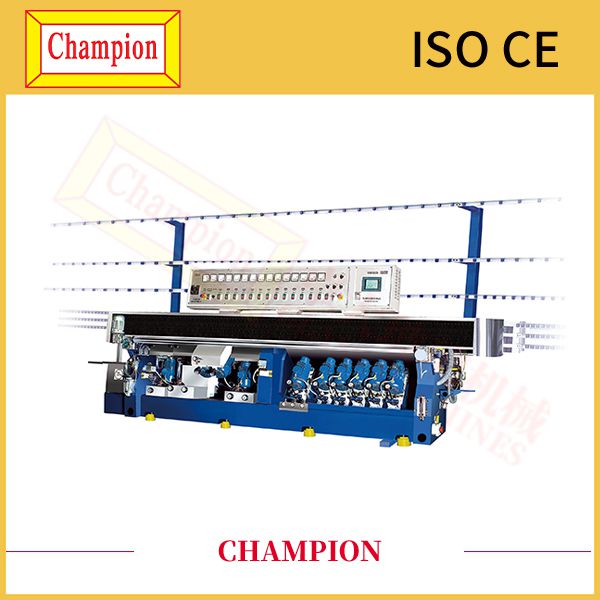

CHAMPION TG6422D GLASS STRAIGHT LINE ANGLE-CHANGING MACHINE
Machine Brief Description
This hot sale PLC Control System Vertical Straight Line Glass Bevelling Machine is used for rough and fine grinding and polishing of bevelling edge of flat glass as well as grinding of bottom. It adopts chainless transmit plate to transfer glass, with stable transmission and high grinding precision. Front track can up and down. max.bevel width is 60mm. The rear transmitting plate is equipped with automatic cleaning device, and can grind rear transmitting plate by itself to keep high precision for a long time. Auto and manual oil supply system is equipped to guarantee machine working under a good lubrication condition to increase the stability. PLC and HMI are adopted for control and display, operator can preset the thickness of glass to be processed, the remained thickness after grinding and the width of bevelling edge.
Major Technical Specification
Processing Speed:
| 0.4~5.5m/min
|
Grinding angle:
| 0~45° |
| Min.glass processing size: | 60mm x 60mm (3-12thickness) |
| Max.glass processing width: | 3000mm |
| Glass thickness: | 3~30mm |
| Total power: | 30.25kw |
| Overall dimension | 8300mm x 1400mm x 2600mm |
| Weight | 6800kg |

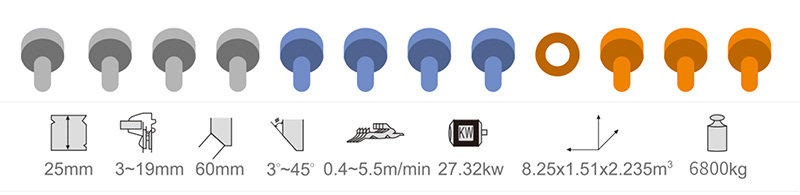

Wheel Disposal
