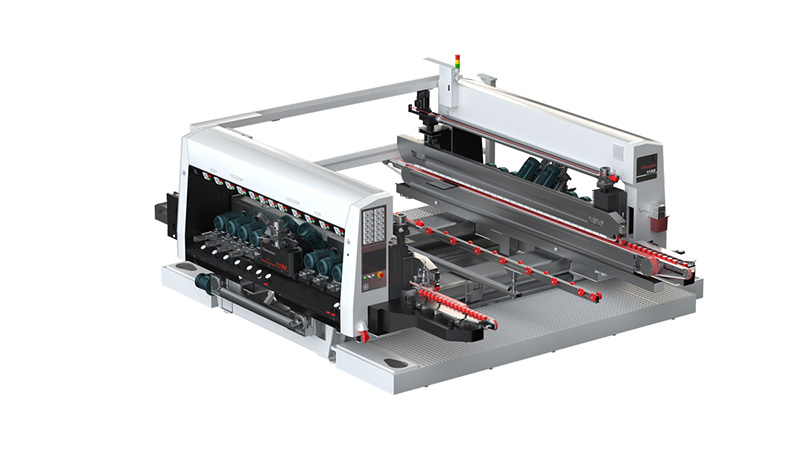

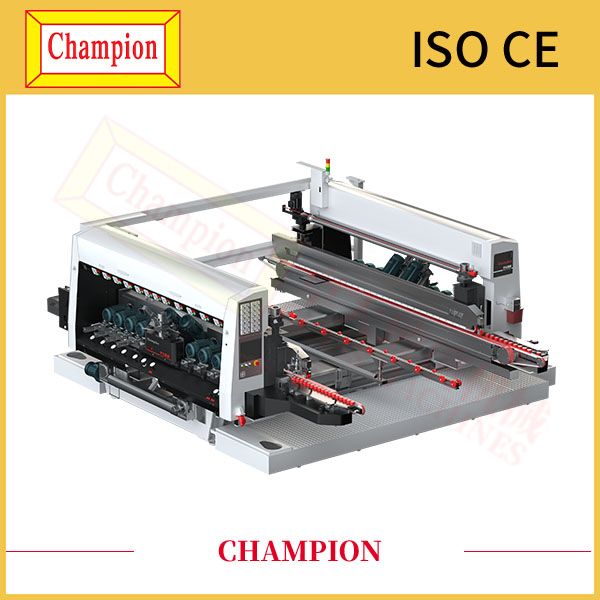

Glass Double Edger Machine
Product Features
Intelligent high speed and high efficiency, polishing automatic compensation, opening and closing, transmission are driven by servo motor, the use of servo motor response characteristics and reliable synchronization performance, to ensure the solid, live on both sides of the transmission of synchronization. Opening and closing is driven by high-precision servo motor, which can make the opening and closing speed reach 8 m/min and guarantee the opening and closing repeating accuracy within ±0.02mm. The grinding head motor is controlled by frequency conversion, and the grinding wheel speed can reach 4080r/min, which effectively improves the grinding ability of the grinding wheel, accelerates the grinding speed and improves the processing efficiency.
Major Technical Specification
TGSBM4220 / TGSBM3020 / TGSBM2520 / TGSBM1620
Max Glass Dimension: 4200 / 3000 / 2500 / 1600 mm
Min Glass Dimension: 350mmx350mm
Grinding Speed: 0.4~20m/min
Glass Thickness: 3~30mm
Max Speed Of Adjusting The Glass Width: 8m/min
Power: 53.6kW
Total weightkg: 9000kg
Working Table Height: 900mm±20mm
Machine Take Up Space: 4890x4480x2200mm
Please look for our "Champion" trademark when purchasing glass machinery! It will bring you excellent quality assurance and high-quality after-sales service.
