CHAMPION TG471B-B GLASS STRAIGHT-LINE BEVELLING MACHINE
Machine Brief Description
This machine is used for rough and fine grinding of straight beveled edge of flat glass, as well as polishing and bottomedge grinding. Before thickness opening and closing, the lifting of guide rail and the swing Angle of grinding head aredriven by servo, and the grinding wheel is automatically compensated by full servo. No chain rolling transfer glasssmooth transfer, high grinding precision. The front guide rail moves up and down, the processing range is wide, thesmallest alass can be shaved to 25mm, the widest bevel side is 60mm; The rear transfer plate is eguipped with anautomatic cleaning device, and the rear transfer plate can be self-grinding on the machine to ensure high precision foia long time; lt is equipped with automatic and manual oil supply systems, so that the whole machine can keep workingunder good lubrication conditions, so that it is more reliable. Mitsubishi PLC control, The man-machine interface showsthat the thickness of the glass to be processed, the remaining thickness after grinding and the width of the bevel canbe set.

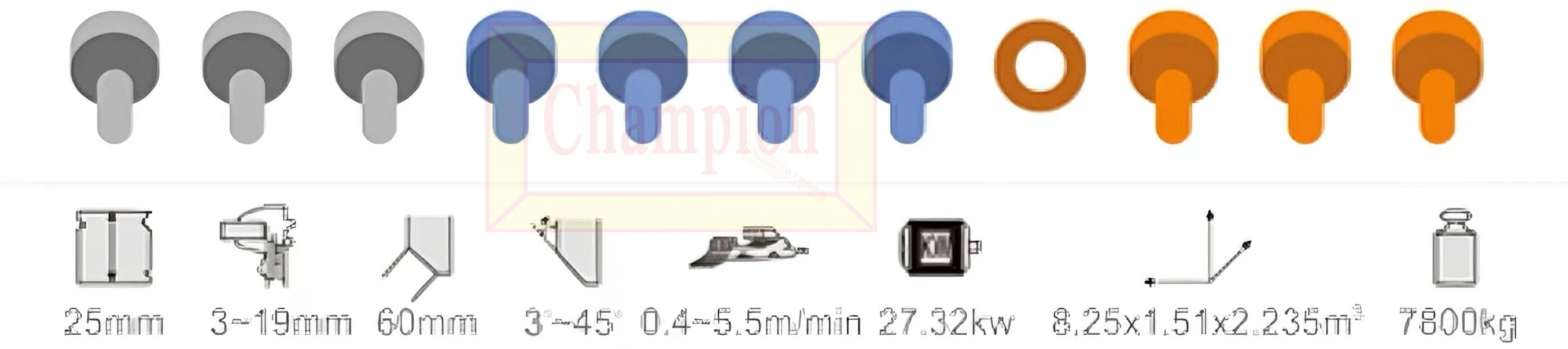

Major Technical Specification
Processing Speed:
| 0.4~5.5m/min
|
Bevel angle:
| 3~45°
|
Max.bevel width:
| 60mm
|
Min.glass processing size:
| 25mmx25mm（3~6thickness）
|
Glass thickness:
| 3~19mm
|
Total power:
| 28.8kW |
Land area:
| 8.25mx1.51m
|
Wheel Disposal
